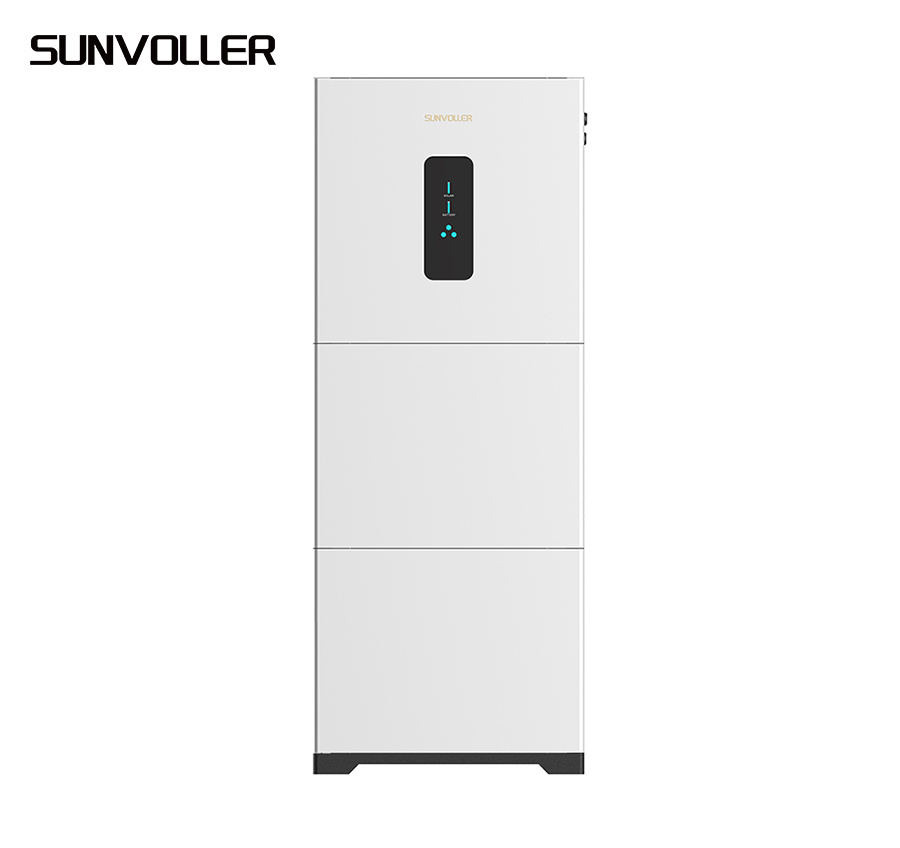

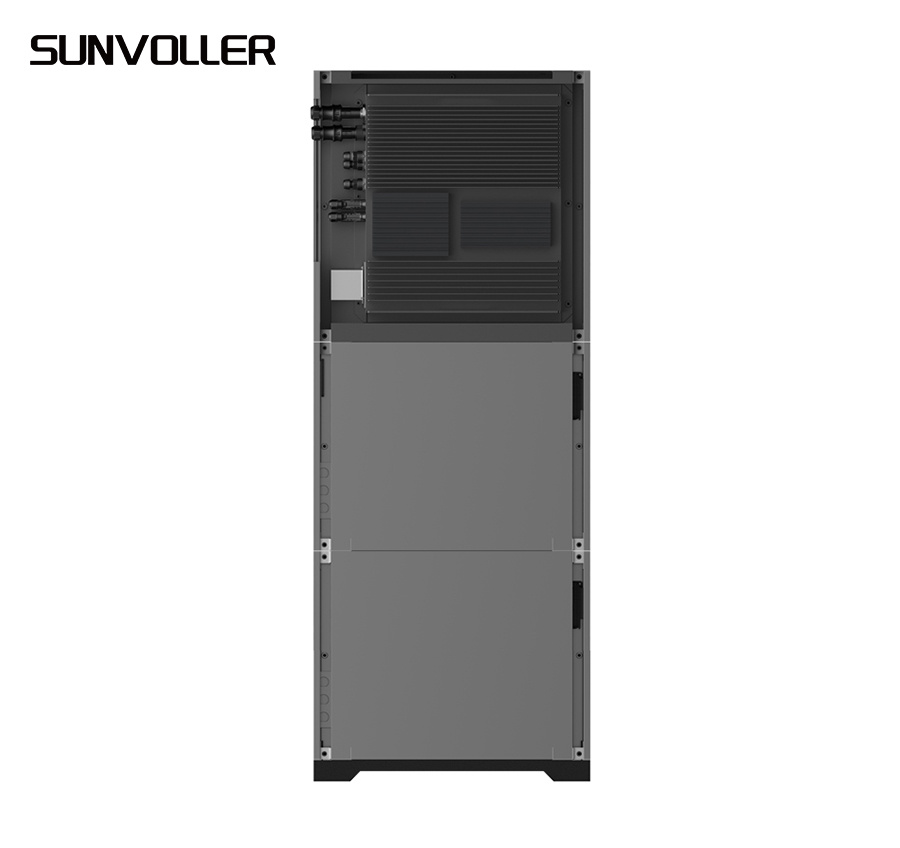

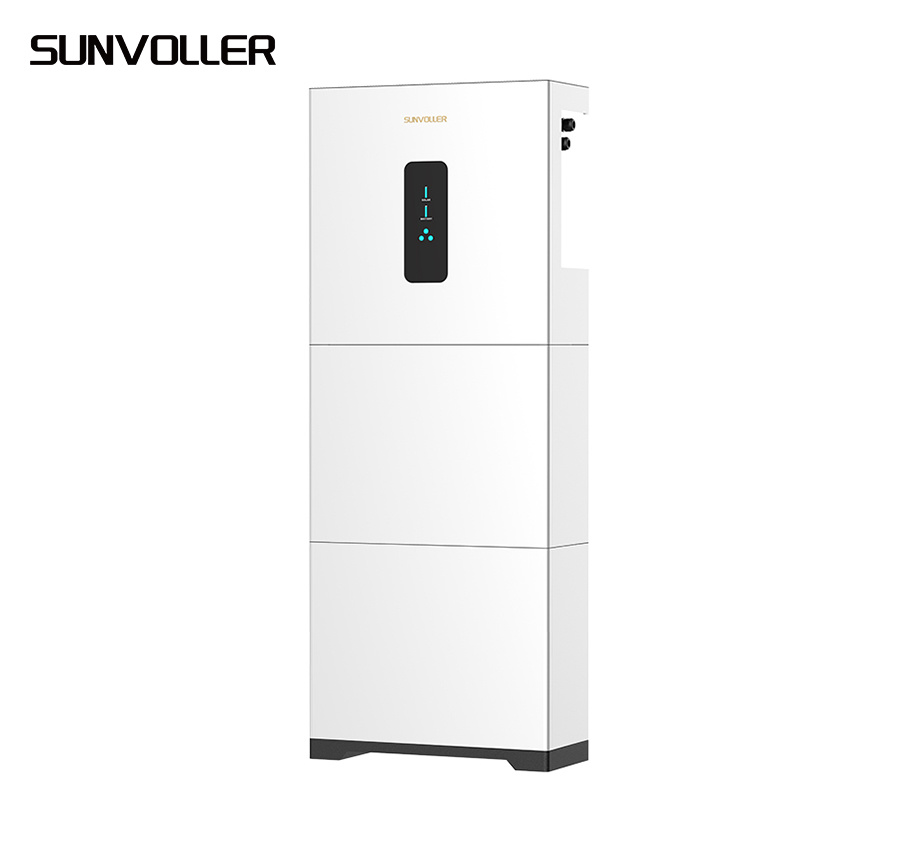

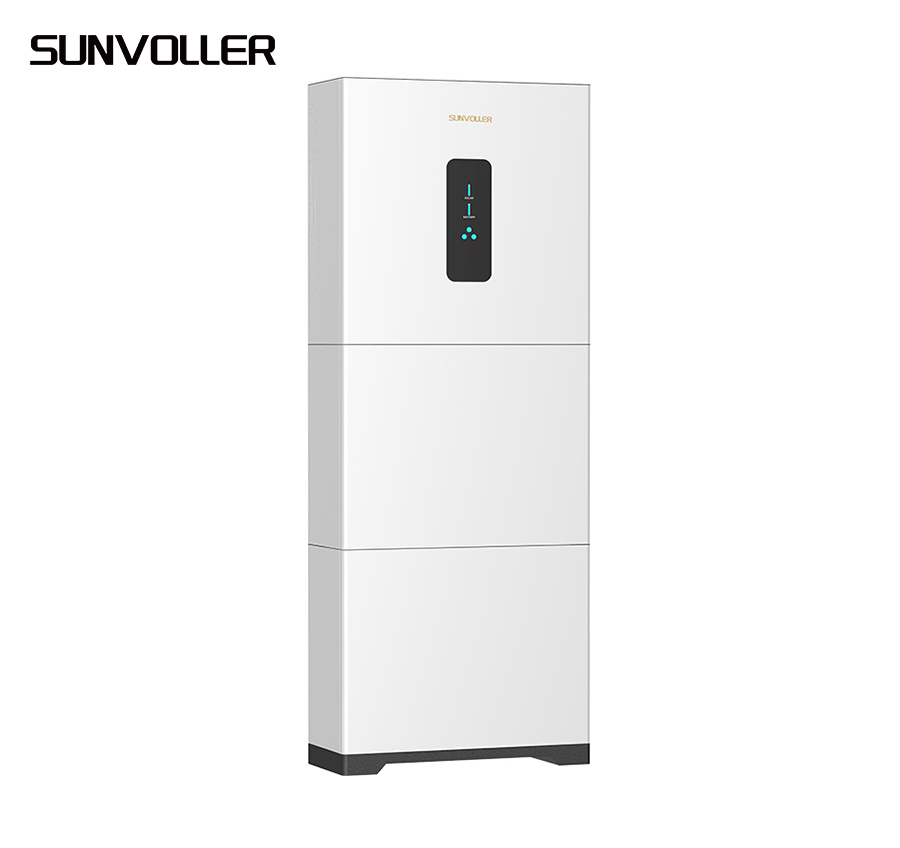

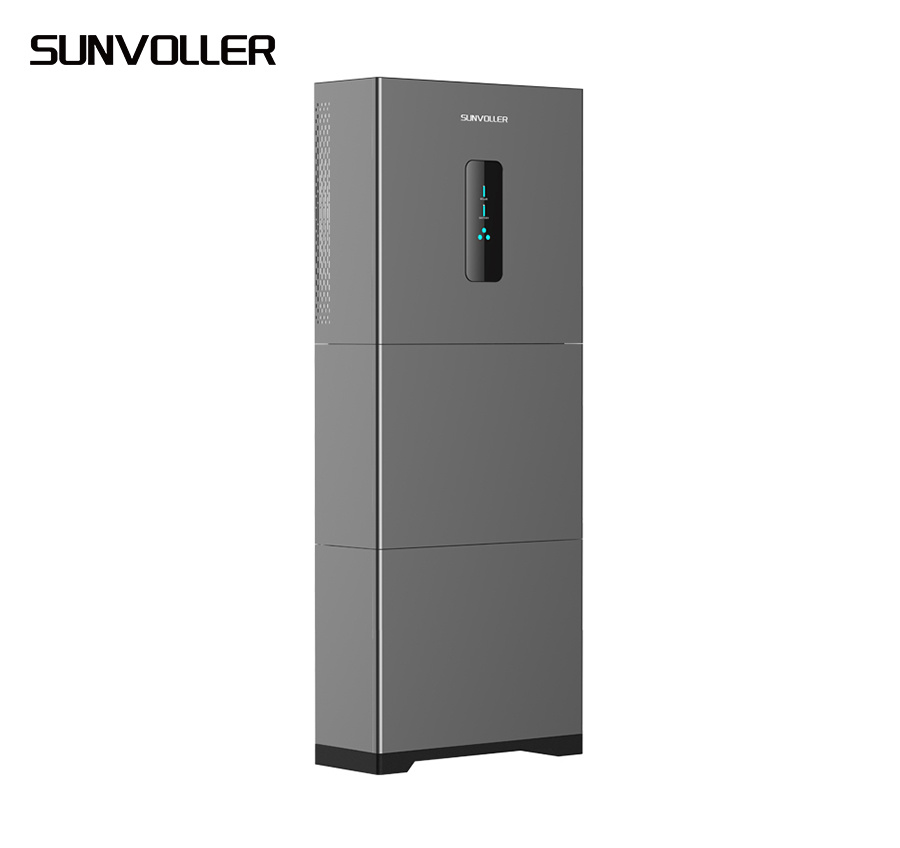

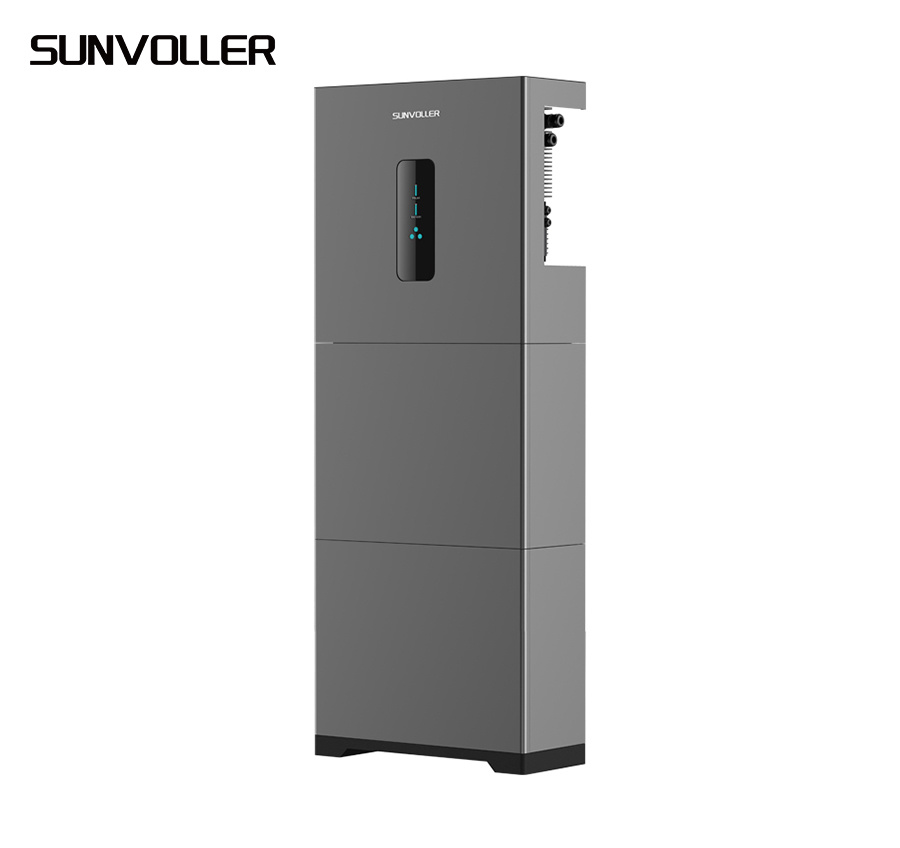

6.8kwh~34.3kwh Three- phase home energy storage all-in-one system
Total capacity : 6.8kwh~34.3kwh
Number of battery boxes : 1~5
Nominal battery voltage : 102.4V~512V
Dimensions (W/H/D) : 650/220/1184~1400/220/1733
Device weight : 105KG~345KG
Degree of protection (as per IEC 60529):IP65
  • Product Details
PV inputMax. PV array power5500wh STC6180wh STC6500wh STC7500wh STC9000wh STC
Max. input voltage550V
MPP voltage range / rated input voltage40V to 530V/380V
Min. input voltage / start voltage40V/50V
No. of independent MPPT trackers / strings per MPPT input2/(1/1)
Max. input current per MPP tracker16A
Max. short-circuit current per MPP tracker20A
Battery inputBattery typeLiFePO4
Total capacity5kwh 10kwh 15kwh 20kwh 25kwh 30kwh
Number of battery boxes123456
Nominal battery voltage51.2V
Max. charging current / Max. discharging current100A/100A
AC outputAC voltage range / Nominal AC voltage180 V to 280 V / 230 V
Rated AC grid frequency50 Hz / 60 Hz
AC grid frequency range50 Hz±5Hz / 60 Hz±5Hz
Rated active power3000W3680W4000W5000W6000W
Rated apparent power3000VA3680VA4000VA5000VA6000VA
Max. apparent power3000VA3680VA4000VA5000VA6000VA
Rated grid output Current (@230V)13.1A16A17.4A21.7A26.1A
Max. grid output current13.6A16A18.2A22.7A27.1A
Harmonics THDi (@ Nominal power)< 3%
AC inputRated grid voltagea.c. 230V
Rated grid frequency50Hz /60H
Rated apparent power6000 VA
Max. input apparent power from grid6000 VA
Rated input current from grida.c. 26.1A
Max. input current from grida.c. 27.3 A
EPS outputNominal output voltage230 V
Nominal output frequency50Hz /60H
Rated apparent power5000 VA
Max. output apparent power5000 VA
Peak output apparent power7500 VA, 10s
Rated Current (@230V)21.7 A
Max. output current21.7 A
Max. switch time≤10 ms
Output THDi (@ Linear load)<3%
EfficiencyMPPT efficiency99.90%
Euro efficiency / Max. efficiency97% /97.6%
Max. battery to load efficiency94.70%
Safety protectionDC-side disconnection device
PV string- / Battery input reverse polarity protection●/●
All-pole sensitive residual current monitoring unit
Anti-islanding protection
Ground fault protection
AC output over current / short circuit current protection●/●
AC over voltage protection
Protection class (as per IEC 62109-1) /
overvoltage category (as per IEC 62109-1)
General dataPower factor at rated power / adjustable displacement≥0.99 / 0.8 leading to 0.8 lagging
Dimensions (W / H / D)550/220/998550/220/14151200/220/14151200/220/14151200/220/1415
Device weight≈84KG≈131KG≈182KG≈232KG≈282KG
Operating temperature range-25°C……+60°C
Noise emissions< 30 dB(A)
Standby consumption< 10 W
Cooling conceptNatural convection
Degree of protection (as per IEC 60529IP65
Climatic category (according to IEC 60721-3-4)4K4H
Max. permissible value for relative humidity (non-condensing)0~95%
Max. operating altitude4000m (>3000m power derating)
FeaturesUser interfaceLED & App
Communication methodRS485 / CAN/Wifi
Integrated power control / Zero export control●/●
